Lightbox Signs Chicago Built to the District Code

Lightbox signs are sealed cabinets with LED lighting inside and a translucent face that carries the name or logo. The whole face glows evenly after dark, which is why a lightbox suits storefronts, entrances, and monument bases. They differ from channel letters, where each letter is lit on its own.

A lightbox sign in Chicago costs what its cabinet size, sides, face, LED layout, mounting, and site access add up to, so the number comes from a quote rather than a range. The city adds its own fees: a $200 zoning review fee for an on-premise sign, plus a building review fee that starts at $50 for a sign under 50 sq ft. Send a photo, a rough size, and your deadline, and we return a written quote with line items. The sign permits page lists what the city reviews.

Lightbox signs in Chicago need a permit, because the city requires one for most on-premise signs, and a sign installed before its permit is issued is subject to citation. A new sign box needs drawings stamped by a licensed architect or engineer, and a registered electrical contractor does the wiring. A cabinet that projects over the sidewalk also needs a Public Way Use permit and a City Council ordinance. SignFreaks prepares the drawings and files the sign permits, then handles the installation.

There are rules on Michigan Avenue and State Street: a box sign must have an opaque, non-illuminated face with illuminated lettering or logos only, and on Michigan Avenue it is capped at 3 ft high, 10 ft long, and 8 in thick. The Wrigley Field Adjacent district prohibits box signs altogether. We check the district before the cabinet is drawn, and when a box is not allowed, channel letters are one alternative.

Lightbox signs can be used outdoors when the cabinet is sealed against water, and they last for years when the face is built for sun. SignFreaks builds an outdoor light box sign from rust-resistant aluminum with a polycarbonate face, IP-rated LEDs, and a weather-resistant laminate. Acrylic faces can yellow or crack over the years, and a worn face or a failed LED section is replaced through sign repair without a new cabinet.

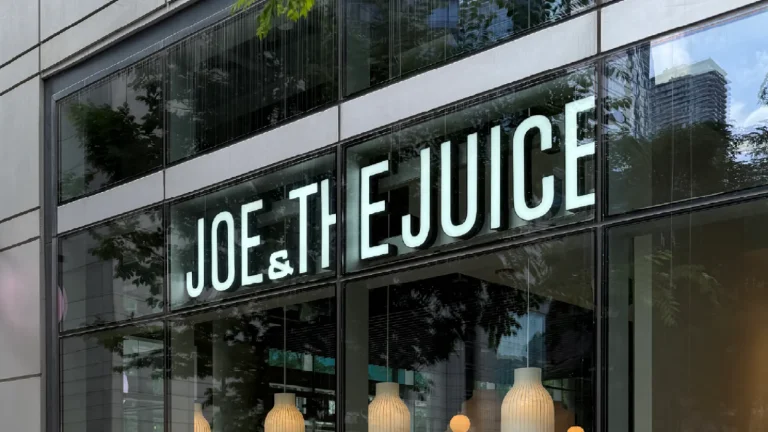

The difference between a lightbox sign and channel letters is what glows. A lightbox lights a whole face from inside a cabinet, while channel letters light each letter on its own and leave the wall visible between them. A lightbox suits full-color artwork and landlord-fixed panels, and channel letters suit a name on a clean fascia. District rules differ too, since Michigan Avenue limits box signs but not letters.

An old lightbox can usually be refaced or retrofitted with LEDs when the cabinet is sound. A retrofit replaces fluorescent tubes and ballasts with LED modules and power supplies, and a reface puts a new face on the existing frame. We check the cabinet depth and wiring first, because the LED layout has to suit the depth to avoid hot spots. The work is part of our sign repair service.

A lightbox sign is not the same as an LED lightbox frame. The sign is a permanent cabinet fixed to a wall, pole, or base and permitted as a sign, while an LED lightbox frame is usually a slim lit frame for graphics that change. If you are weighing both for a Chicago location, send a photo and describe how long the graphic stays up, and we will tell you which fits and what permit applies.

One Chicago sign company can design, permit, build, and install a lightbox sign, and SignFreaks does all four with its own shop, crew, and lift, which keeps the district rule check ahead of the drawings. For a matching entrance, we also build awnings, canopies, and vestibules.
