Channel Letters Chicago Built to Code

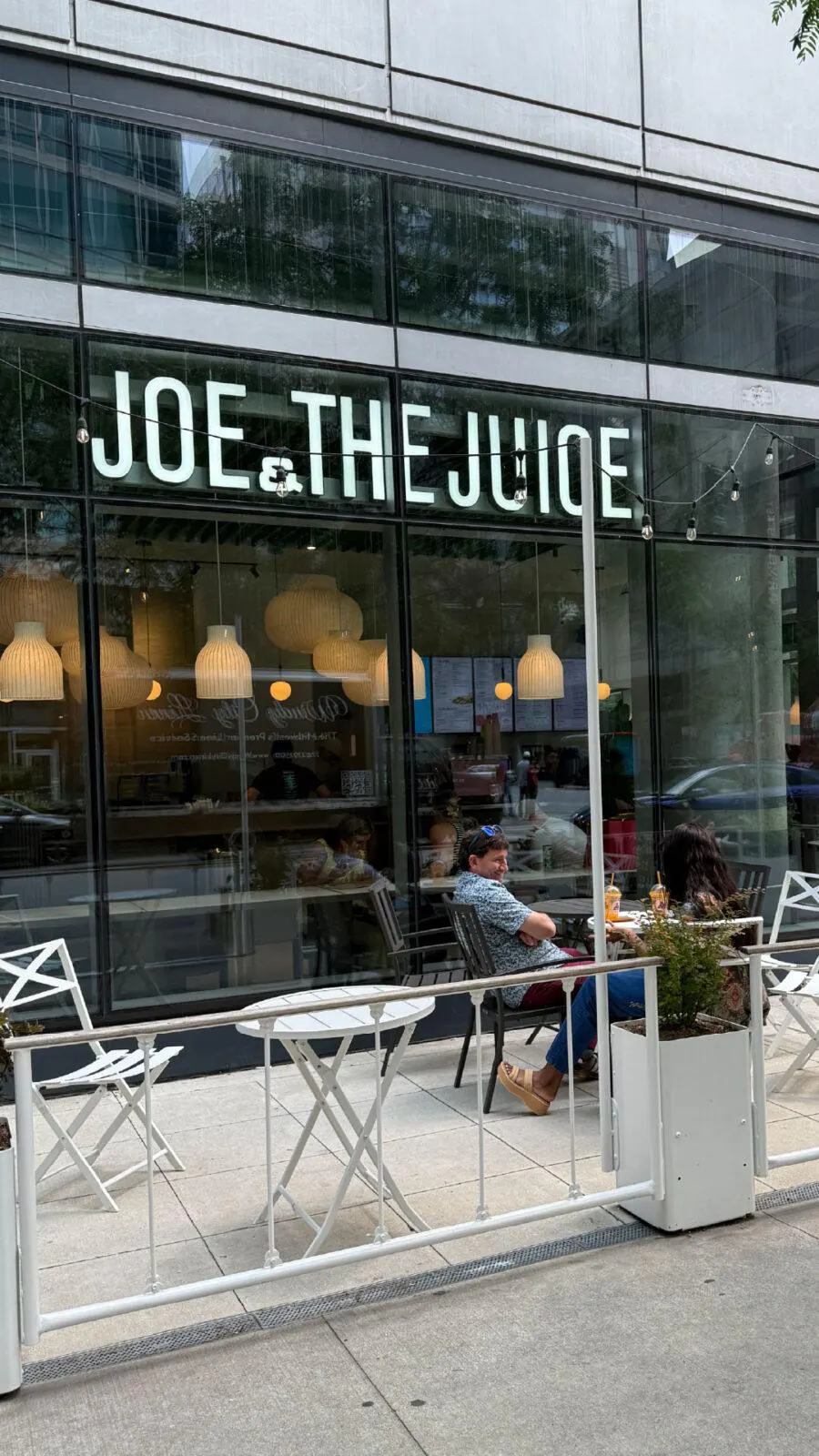

Channel letters on a sign are individually fabricated letters, each one a hollow aluminum shell with an acrylic face and, usually, LED lighting inside. Every letter or logo shape is built and mounted on its own, which is why a set reads as a finished storefront sign and sits apart from other custom signs.

A channel letter sign in Chicago costs what its letter height, letter count, lighting, mounting, and site access add up to, so the number comes from a quote rather than a range. The city adds its own fees: a $200 zoning review fee for an on-premise sign, plus a building review fee that starts at $50 for a sign under 50 sq ft. Send a photo, a rough size, and your deadline, and we return a written quote with line items.

The different types of channel letters are front-lit, halo-lit, a combination of the two, and non-illuminated. Front-lit letters glow through a translucent face, halo-lit (reverse) letters wash the wall behind them with light, and non-illuminated letters carry no lighting at all, which suits daylight-only sites. When the landlord supplies a fixed sign panel, a lightbox is the usual answer instead.

Channel letters in Chicago need a permit, because the city requires one for most on-premise signs, and a sign installed before its permit is issued is subject to citation. A lit set also needs a registered electrical contractor for the wiring, and a larger set needs engineered drawings. SignFreaks prepares the drawings and files the sign permits, then handles the installation.

Channel letter installers in Chicago follow four steps: survey the wall, fabricate the letters to the permitted drawings, fix them to the wall or a raceway, and connect the power. The survey matters because brick, EIFS, precast, and metal panel each want different anchors, and EIFS needs care to keep water from getting behind the face. A registered electrical contractor makes the final connection. We cover the full job under sign installation.

Channel letters should be sized at about an inch of letter height for every ten feet of viewing distance, then adjusted for traffic speed and street clutter, which is the usual rule of thumb in the trade. The height you can use is capped by the sign area your frontage allows, and Chicago’s special districts set limits of their own, so we measure the frontage and check the code before recommending a height. The permit drawings follow from that final size.

The difference between a raceway and direct mount is how the letters are fixed to the wall. A raceway is a painted aluminum box that carries the letters and the wiring as one unit, while direct mount fixes each letter on its own and hides the wiring inside the wall. Direct mount looks cleaner, but a raceway means fewer wall penetrations, is often what a landlord requires, and is easier to take down through sign removal at the end of a lease.

The LEDs in commercial-grade channel letters are rated for tens of thousands of hours, and in practice the power supply usually fails before the modules do. Both can be replaced without taking the letters down, so a letter that goes dark is usually a failed module or power supply that a technician swaps on site through sign repair.

One Chicago sign company can build channel letters together with an awning, a canopy, a vestibule, or an enclosure, and SignFreaks builds all four, so the sign and the entrance are drawn together and answer to one company.
